Description

Featuring a brand-new control arm solution, Rough Country's Dodge 2500 Control Arm Drop Bracket System improves driveline geometry. By utilizing a set of beefy drop brackets we've eliminated the steep mounting angle often seen on 5in and larger kits. By mounting your stock arms to the reduced angle provided by our Drop Bracket System, you'll gain better ride quality and better caster angle for increased drivability. This 5in kit includes our versatile N3 Shock Absorbers! Our N3 shocks are custom tuned specifically for this application - meaning you get a shock designed specifically for the weight and maneuverability of your truck. Incorporating "Velocity Sensitive Valving" technology, these shocks utilize a 10-stage variable valving process that allows for a super smooth highway ride and outstanding control in rugged off road situations from the same shock, with no need for further adjustment.

Does NOT fit V8 GAS engine models. Does NOT fit Dually models. Does NOT fit 3rd Generation new body models. Requires cutting and drilling. Models equipped with factory overload springs will need to have the overload removed for the new block and u-bolt kit On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.
Does NOT fit V8 GAS engine models.
Does NOT fit Dually models.
Does NOT fit 3rd Generation new body models.
Requires cutting and drilling.
Models equipped with factory overload springs will need to have the overload removed for the new block and u-bolt kit
On vehicles equipped with a two piece driveshaft &amp
carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.
Installation Time: 8-10 hours
Tire Info: 35x12.50R17:17x8:8x6.5:-:-
35x12.50R17:Factory 17:8x6.5:-:-
35x12.50R20:20x8:8x6.5:-:-

Maintains factory steering angles
Works with factory 17-inch and 20-inch wheels

Specifications

Details

Tire Info: 35x12.50r20:factory 20:8x6.5/8x165.1:-:-;35x12.50r17:factory 17:8x6.5/8x165.1:-:-;35x12.50r17:17x8:8x6.5/8x165.1:+0:-;35x12.50r17:17x8:8x6.5/8x165.1:+1:-;35x12.50r17:17x9:8x6.5/8x165.1:-12:-;315/70r17:17x9:8x6.5/8x165.1:-12:-;35x12.50r18:18x9:8x6.5/8x165.1:-12:-;295/70r18:18x9:8x6.5/8x165.1:-12:-;285/75r18:18x9:8x6.5/8x165.1:-12:-;35x12.50r20:20x8:8x6.5/8x165.1:+0:-;35x12.50r20:20x8:8x6.5/8x165.1:+1:-;35x12.50r20:20x9:8x6.5/8x165.1:-12:-;35x11.50r20:20x9:8x6.5/8x165.1:-12:-;295/65r20:20x9:8x6.5/8x165.1:-12:-
Tire, Wheel, and Offset Info: 35x12.50r20:factory20:8x6.5 8x165.1:-:-; 35x12.50r17:factory17:8x6.5 8x165.1:-:-; 35x12.50r17:17x8:8x6.5 8x165.1:+1:-; 35x12.50r20:20x8:8x6.5 8x165.1:+1:-
Ships in Multiple Boxes: y
Shipping Options: no restrictions
Prop 65 (C, R, or CR): cr

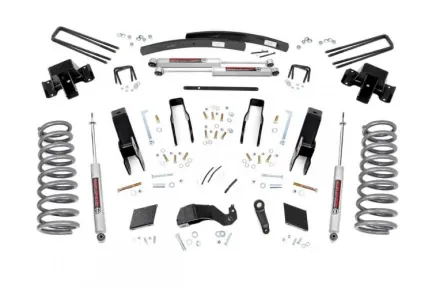

Front Components: lifted coil springs/lower control arm drop brackets/pitman arm/track bar drop bracket/sway-bar drop brackets/hardware
Utv Product: n
Rear Components: 4in fabricated lift blocks/add-a-leaf's/u-bolts/hardware
Title: rough country - 5 inch lift kit - dodge 2500 4wd (2000-2002)
Category: susp lift kits 4wd
Install Time: 8-10 hours
Prop 65 Yes/No: yes
Prop 65 - Short Label: warning: cancer and reproductive harm - www.p65warnings.ca.gov
Prop 65 Warning Label: warning - both cancer and reproduction.jpg
